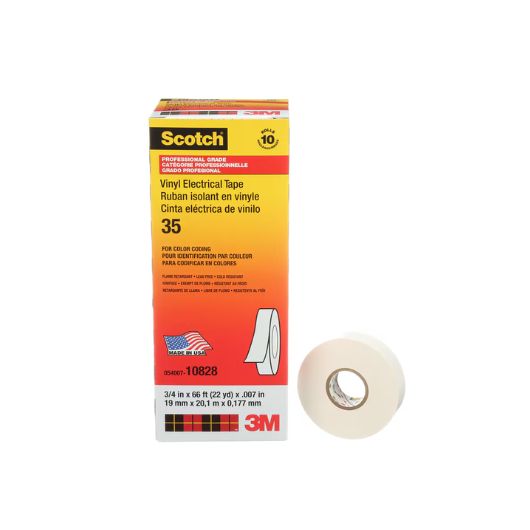

Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft, White, 10 rolls/carton, 100 rolls/Case

Description

• Material: The tape is made of a durable, elastic polyvinyl chloride (PVC) backing combined with a pressure-sensitive, rubber-resin adhesive.
• Dimensions & Thickness: Each roll measures 3/4 inch (19 mm) in width, 66 feet (20.1 m) in length, and is 7 mils (0.178 mm) thick.
• Electrical Rating: It is 600V rated and provides primary electrical insulation for splices up to 600V.
• Temperature Range: The tape is designed to perform in temperatures ranging from 14°F to 221°F (-10°C to 105°C), making it suitable for both cold weather applications and high-temperature conditions.
• Resistance: It is flame-retardant and highly resistant to UV rays (white color is fade-resistant), abrasion, moisture, alkalis, acids, solvents, and corrosion.
• Conformability: The elastic backing allows the tape to stretch easily and adhere to virtually any shape, providing a tight, moisture-tight seal.
• Certifications: The product is UL Listed, VDE, and CSA Certified, and is also RoHS compliant.
• Packaging: It comes packaged with 10 rolls per carton and 100 rolls per case.

• Phase Identification and Color Coding: The white color is specifically used for phase identification and color coding of motor leads and piping systems.
• Insulation: It is ideal for insulating electrical wires and is compatible with synthetic cable insulations, jackets, and splicing compounds.
• Safety Marking: It can be used for marking safety areas on equipment and in industrial environments.
• Cable Repair: It is suitable for cable jacket repair in both indoor and weather-protected outdoor applications.
