Flap Disc, 4.5×7/8, T29, Non-Woven Med

$7.60

  • Flap Disc Type:29 – Conical Flap Disc
  • Overall Diameter:4-1/2 in
  • Connector Size:7/8 in
  • Grade:Medium
  • Maximum Operating Speed: 13,300 RPM
Add to wishlist Add to compare
Category: Brand:

Description

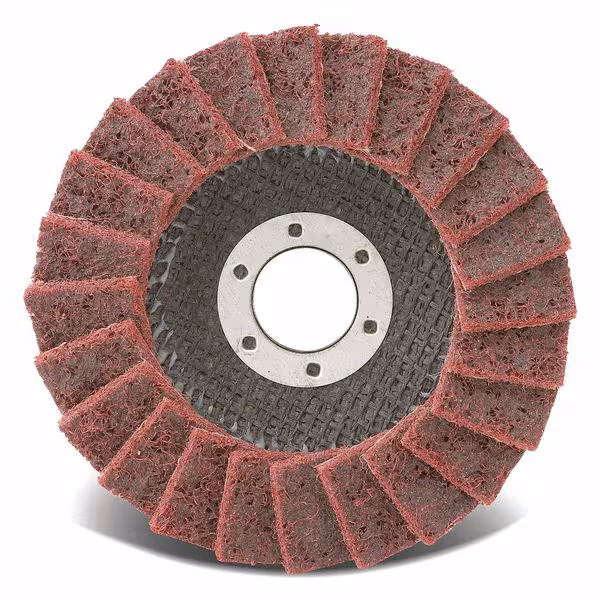

The CGW Abrasives 70122 is a 4.5-inch non-woven surface conditioning flap disc designed for one-step cleaning, finishing, and blending of metal surfaces. It is specifically engineered with a medium grade (maroon) grit that provides a finish comparable to 120–180 grit abrasives.
Technical Specifications
According to data from Grainger and Zoro, the disc features the following mechanical properties:
  • Diameter: 4.5 inches (115 mm).
  • Arbor Size: 7/8 inch center hole.
  • Shape (Type): Type 29 (Conical), which is angled at approximately 10 degrees to provide more aggressive cutting and better contact on contours and flat surfaces.
  • Maximum Speed: 13,300 RPM.
  • Abrasive Material: Non-woven aluminum oxide, which is durable and heat-resistant for high-speed use.
Key Performance Features
  • Non-Woven Construction: Made of open-weave nylon webbing, this material conforms to irregular or contoured surfaces without gouging the workpiece.
  • Consistent Finish: As the nylon flaps wear down, new abrasive material is continuously revealed, ensuring a uniform finish throughout the life of the disc.
  • Heat Resistance: The open structure allows for airflow, which reduces heat buildup and prevents metal discoloration during extended use.
  • Single-Step Efficiency: It is designed to replace the multi-step process of using a traditional grinding disc followed by a finishing pad, allowing for deburring and finishing in one pass.
Recommended Applications
Reviewers and manufacturers like 3M and Empire Abrasives recommend this medium-grade disc for:
  • Material Types: Highly effective on stainless steel, mild steel, aluminum, and titanium.
  • Tasks: Blending weld seams, removing light rust or oxidation, cleaning weld splatter, and preparing surfaces for coating or painting.
  • Detail Work: The Type 29 conical shape makes it particularly well-suited for edge work and blending scratches after using more aggressive coated abrasives.
